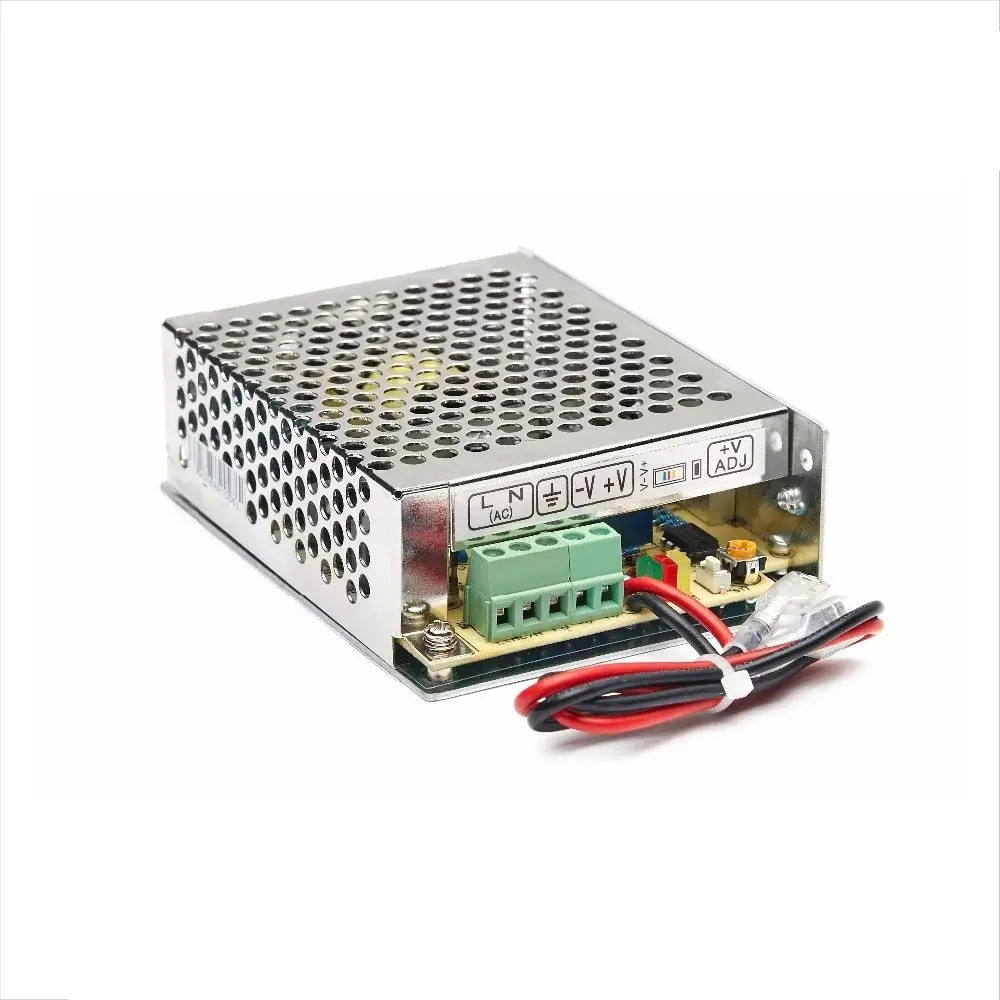

Mantenedor Cargador De Batería 12v 35w 2.0a

Mantenedor Cargador de Batería 12v 35w 2.0A
Model SC-35-12 SC-35-24
OUTPUT DC voltage CH1:13.8V CH1:13.4V CH1:27.6V CH2:26.5V
Voltage tolerance ±2% —– ±1% —–
Rated current 2.0A 0.5A 1.0A 0.3A
Current range 0~2.0A —– 0~1.0A —–
Rated power 34.3W 35.6W
Ripple&noise 120mvp-p —– 120mvp-p —–
DCvoltage ADJ.range CH1:11.3~14.9V CH1:21.3~29.8V
Setup,rise,hold time 800ms,50ms,80ms/230VAC, 1600ms,50ms,16ms/115VAC
INPUT Voltage range 90~264VAC,127~370VDC
frequency 47~63HZ
AC current 0.9A/115VAC,0.45A/230VAC
efficiency 81% 83%
Inrush current Cold start current 25A/115VAC,45A/230VAC
Leakage current < 1mA/240VAC
PROTECTION Over load Rated output power110%~150% start over load protection
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
Battery protection 9.5~11V 20~22V
At low voltage protection mode:cutoff output

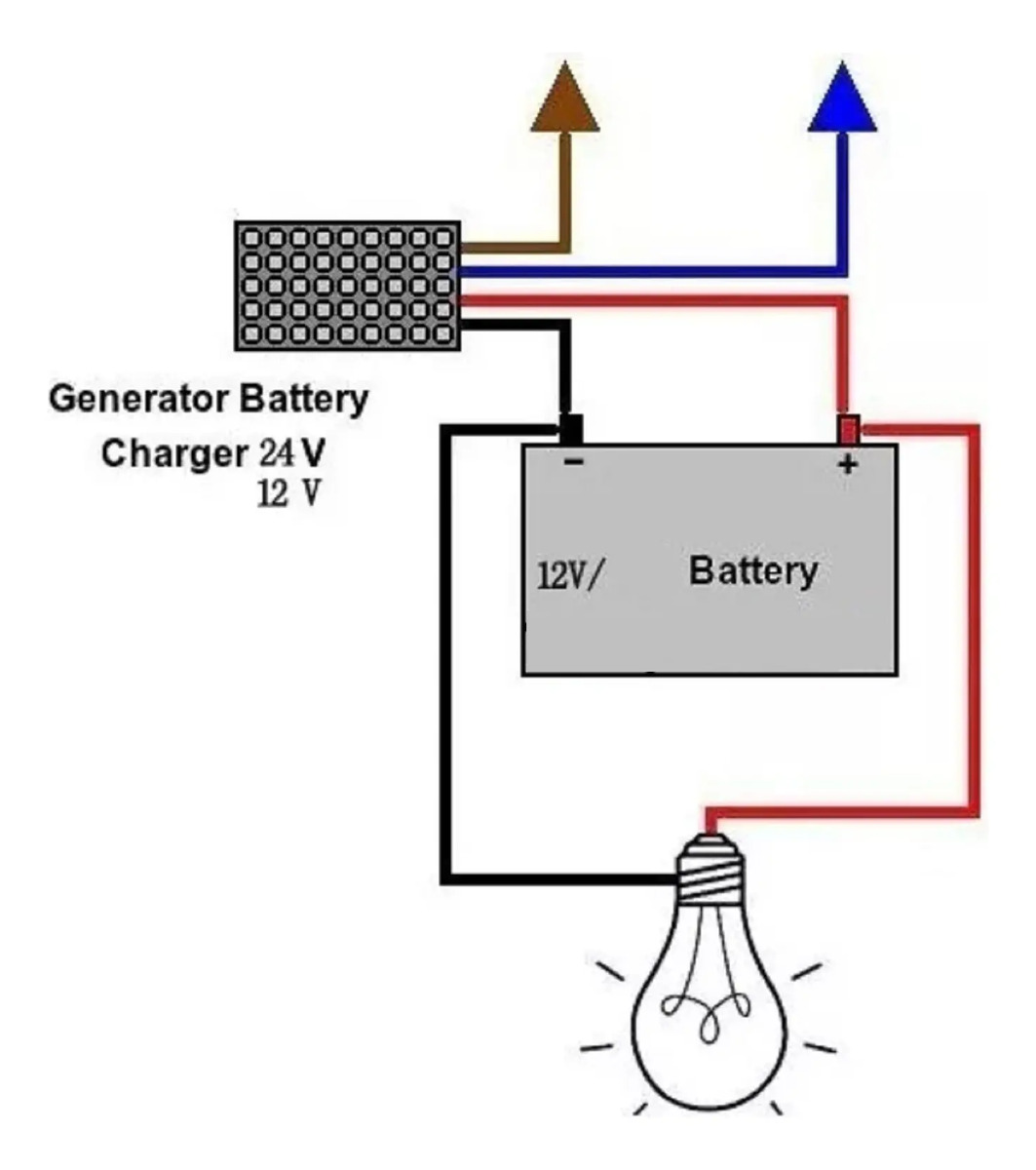

FUNCTION UPS introduction long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop charging when it’s full,prevent over charging. Effectively extend battery life,AC/battery auto switch ,no switch time,no need human guard,
cold-start ,when there is no AC input ,can use battery start UPS,Meet the user’s emergency needs
ENVIRONMENT Working temp,humidity -10°C~+60°C,20%~90%RH
Storagetemp,humidity -20°C~+85°C,10%~95%RH non-condensing
Withstand vibration 10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
SAFETY Withstand voltage I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC
OTHERS Dimension 111*78*36mm (L*W*H)
Weight 0.3kg
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25°Cof ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12″ twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
